HD32.8.16 16 INPUTS TEMPERATURE DATA LOGGER FOR THERMOCOUPLES

HD32.8.16 16 INPUTS TEMPERATURE DATA LOGGER FOR THERMOCOUPLES

8 or 16 INPUTS DATA LOGGER FOR THERMOCOUPLES

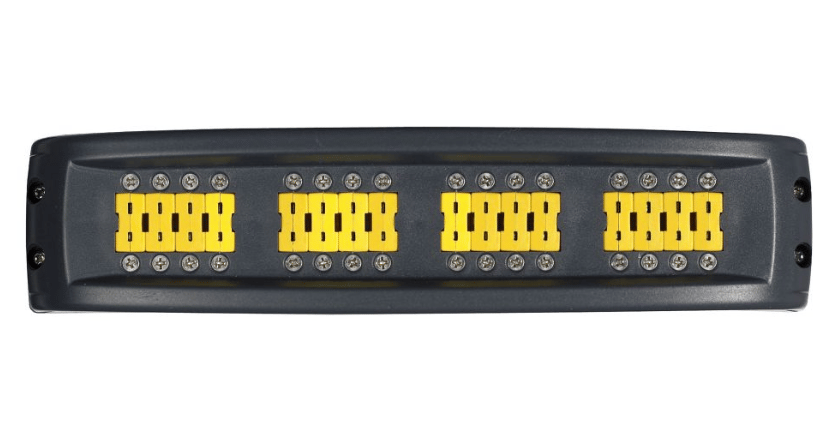

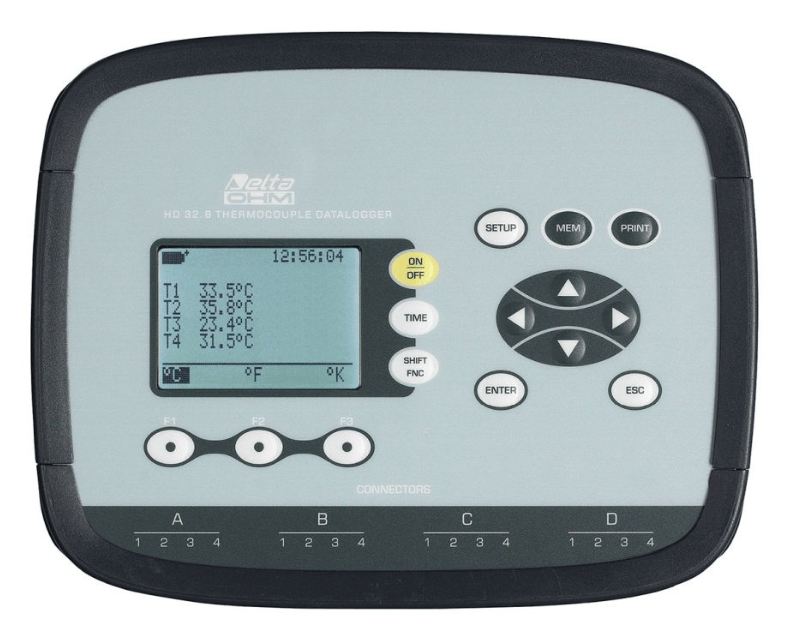

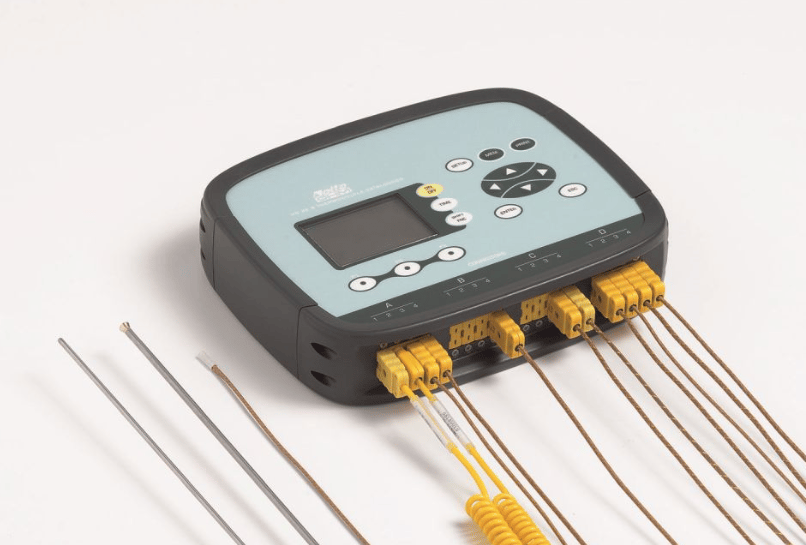

The HD32.8.8 and HD32.8.16 are two robust data loggers with 8 inputs (HD32.8.8) or 16 inputs (HD32.8.16) for K, J, T, N, R, S, B and E type thermocouple with miniature connector temperature probes. During the measuring phase, the connected probes must be of the same type.

The captured data can be displayed and processed on the PC using the DeltaLog9 software. The instrument has a total capacity of 800,000 acquisitions to be divided among all the present inputs. Storage can be managed in two ways: when the available memory is full, data are overwritten by starting from the oldest ones (circular memory), otherwise storage stops when the available memory is full. Maximum, minimum or average of the stored values are calculated.
