Model 1168 BTU Ultrasonic Flowmeter

1168 BTU(version 3.0.1) Meter is a precision ultrasonic energy meter. It features a non-invasive clamp-on design for easy installation without disrupting operations, and supports multiple output options including 4-20mA, pulse output, and RS485 MODBUS for seamless integration with building management systems. With flow accuracy of ±1% and energy accuracy of ±2%, it offers reliable data. The meter has a wide pipe size range (1" to 48"), IP65/IP68 protection rating. It is ideal for optimizing energy use and reducing operational costs in modern buildings and hospitals.

Digital Correlation Transit Time Flowmeter

Installation Method: wall mount

Flow Range: 0.03 ~ ±16ft/s (0.01 ~ ±5m/s)

Accuracy: ±1.0% of Measured Value

Repeatability: 0.3%

Pipe Size Range: 1”~48” (25mm ~ 1200mm)

Keyboard:16 (4×4) Touch Keys

Display: 20×2, Alphanumeric, Backlight LCD

Power Supply: 10-36V DC@1Amax

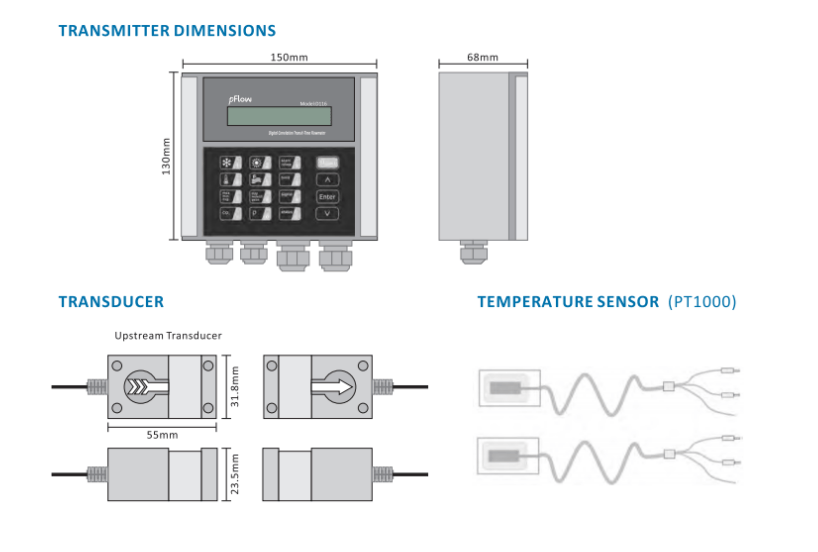

Transmitter Enclosure: IP65, ABS/PC enclosure

Ambient Temperature: 14°F To 122°F(-10°C~50°C)

PT1000 temperature sensors
