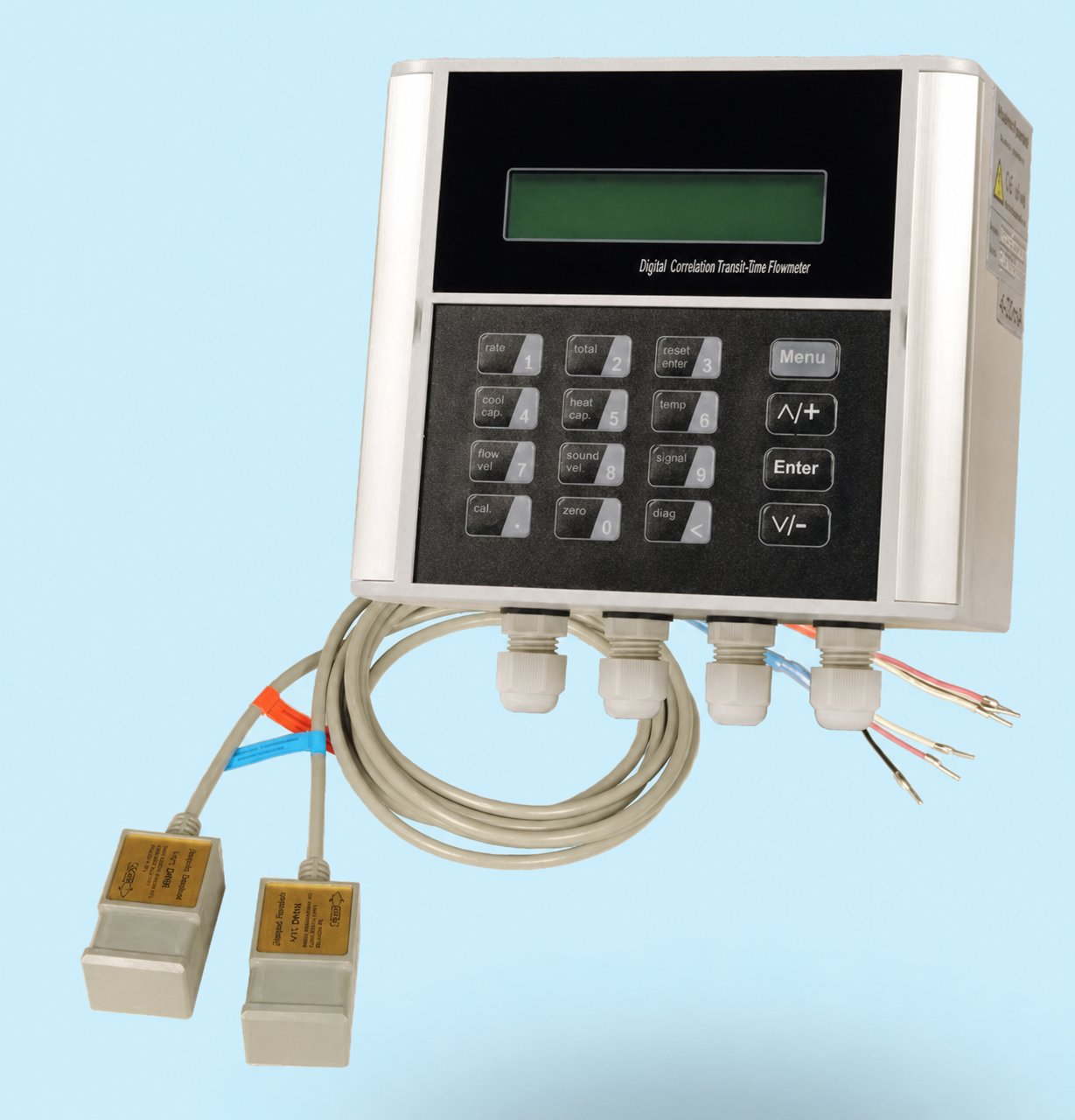

Model 1168 Wall Mount Ultrasonic Flowmeter

Model 1168 Series Ultrasonic Flowmeter is a state-of-the-art iniversal transit-time flowmeter designed using FPGA chip and low-voltage broadband pulse transmission. Digital Correlation Transit Time Flowmeter

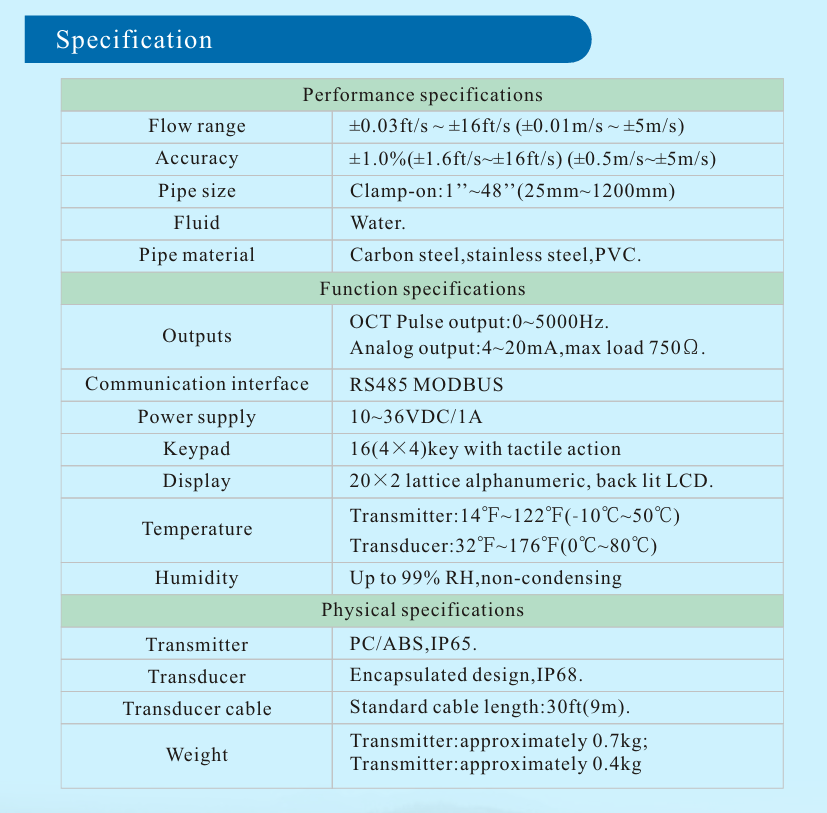

Installation Method: wall mount

Flow Range: 0.03 ~ ±16ft/s (0.01 ~ ±5m/s)

Accuracy: ±1.0% of Measured Value

Repeatability: 0.3%

Pipe Size Range: 1”~48” (25mm ~ 1200mm)

Keyboard:16 (4×4) Touch Keys

Display: 20×2, Alphanumeric, Backlight LCD

Power Supply: 10-36V DC@1Amax

Transmitter Enclosure: IP65, ABS/PC enclosure

Ambient Temperature: 14°F To 122°F(-10°C~50°C)
