Model 1268 portable ultrasonic flowmeter

Model 1268 portable ultrasonic flowmeter

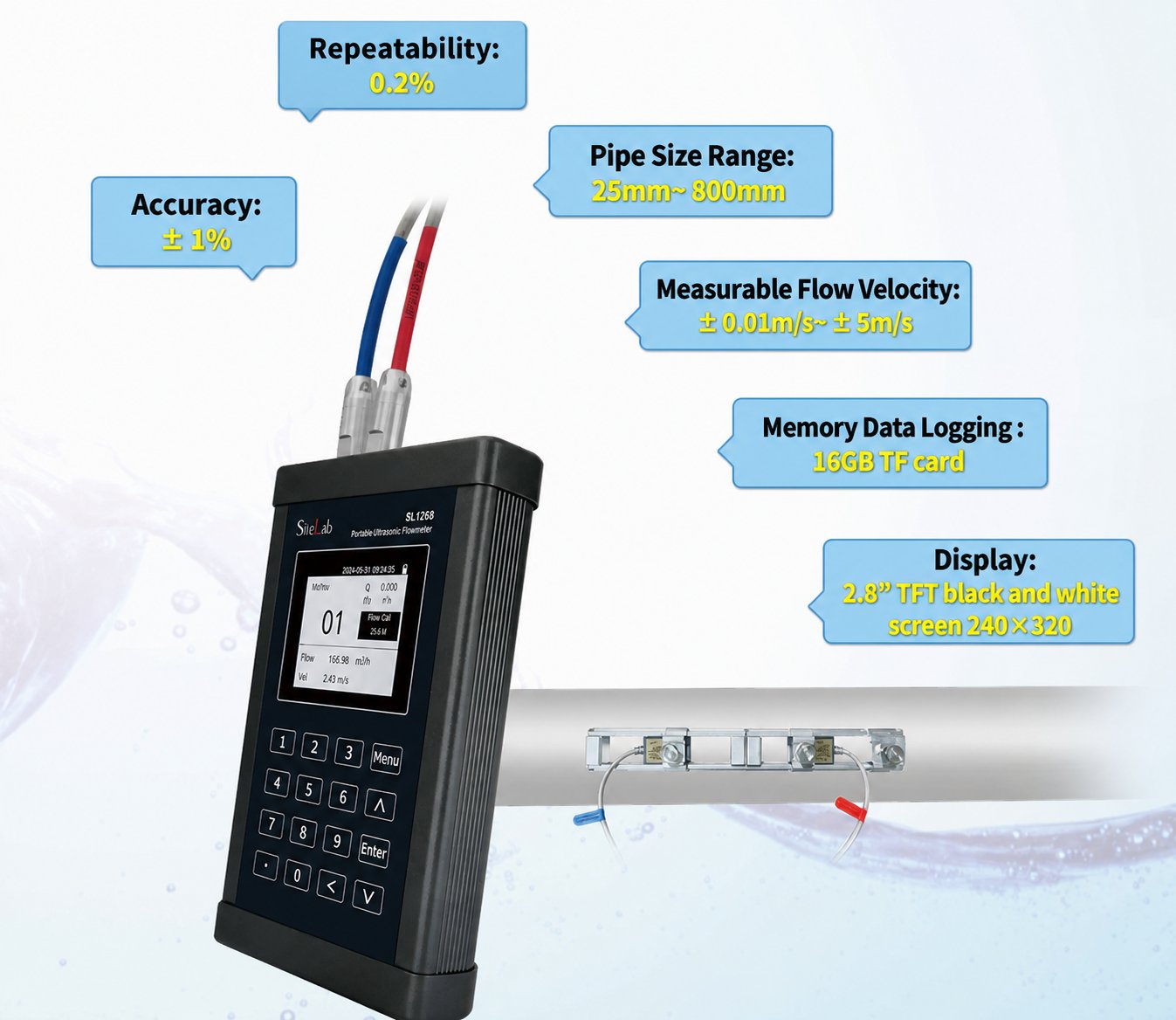

1268 portable ultrasonic flowmeter is a widely used time difference ultrasonic flowmeter with compact and lightweight design, making it easy to carry around. It features a recharge-able battery and universal power supply, allowing user to conduct pipeline measurements anytime, any-where. The magnetic clamp-on transducer installation is simple and can be attached to metallic pipes with magnetic properties for measurements. It is particularly suitable for on-site flow detection of toxic, highly corrosive media, overhead pipelines, and various pressure-resistant requirements. The instrument is equipped with 16G TF card for storage, enabling recording of real time flow data changes, significantly enhancing the reliability of cumulative flow measurement and the security of data collection.

SPECIFICATIONS:

Flow Range: 0.03~ ±16ft/s (0.01 ~ ±5m/s)

Accuracy: ±1% of measured value

Repeatability: 0.2%

Pipe Size: 1′′~32′′ (25mm ~ 800mm)

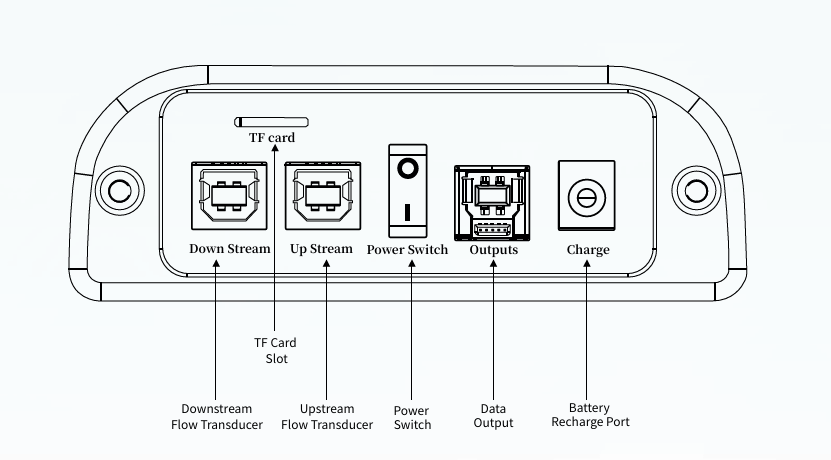

Outputs: Modbus RS485,4~20mA, Maximum 500Ω,OCT pulse

Power Supply: 10.8V Rechargeable Lithium Battery

Power (continuous operation of main battery 10 hours ). Display: 2.8′′ 320*240 TFT black and white screen

16G TF Card High Memory Data Logging

Ambient Temperature:14°F to 122°F(-10°C~50°C)

Fluid Temperature: : 32°F to 176°F (0°C~ 80°C)

Transducers:IP68, 5m Cable
