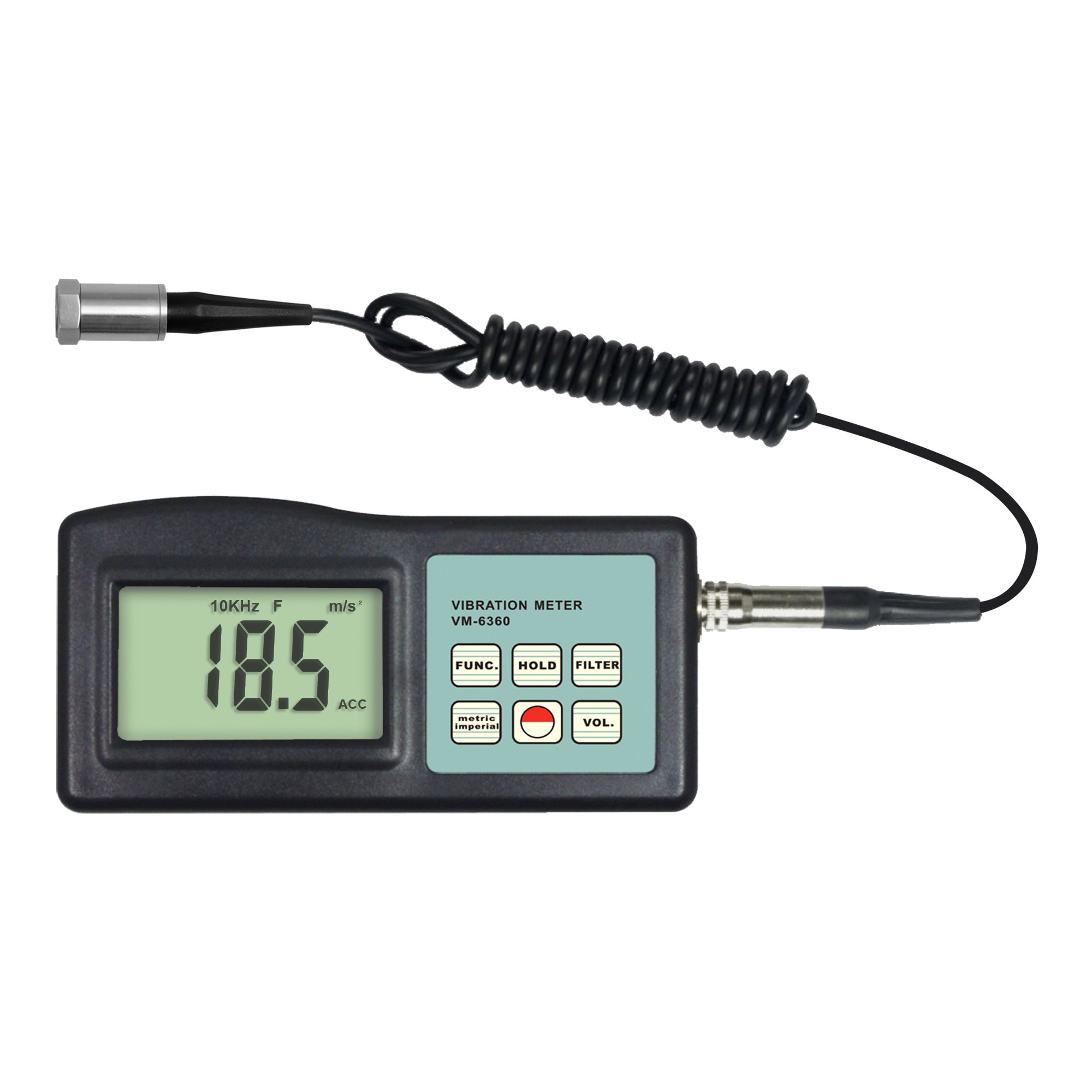

6360 Vibration meter

6360 Vibration meter

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

* Individual high quality accelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* Optional headphones for use as electronic stethoscope.

* Bearing condition monitoring function.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Range:

Acceleration: 0.1m/s²~400m/s²Equivalent Park

Velocity: 0.01mm~400mm/s True RMS

Displacement: 0.001mm~4.0mm Equivalent Peak-peak

Standard package:

Main Unit

Piezoelectric Transducer

Powerful Rare Earth Magnet

Probe(Cone) & Probe(Spherical)

Carrying Case(B04)

Manual Book
